A texture spraying machine is a specialized airless pump system designed to apply thick, viscous drywall compounds, plasters, stucco, and popcorn/acoustic ceiling materials. Its core function is to efficiently mix and pump these paste-like materials and project them onto walls and ceilings to create various surface textures.

  1. Hopper: The thick, pre-mixed material is loaded into a large open hopper.

  2. Agitation: A rotating paddle or auger inside the hopper constantly stirs the material to prevent settling and ensure a consistent, lump-free flow.

  3. Pumping: A heavy-duty, positive-displacement piston pump (often with a reversible feature) draws the material from the hopper and pumps it through a hose.

  4. Spraying: The material is expelled at high pressure through a spray gun and out of a large-orifice nozzle. The pattern and texture are controlled by the nozzle size, air pressure (if using an air-assisted gun), and the operator’s technique (distance, motion).

  • Heavy-Duty Pump & Motor: Built to handle extremely abrasive, non-flowing materials without clogging. More powerful than a standard paint pump.

  • Large Hopper with Agitator: Essential for keeping heavy compounds in suspension.

  • Reversible Pump/Motor: A critical feature. Allows the operator to reverse the material flow to clear a hose or gun clog instantly.

  • Wide Hose & Gun: Uses a 1/2-inch or larger diameter hose and a gun with a large fluid passage to minimize resistance.

  • Air-Assist Attachment (Common): Many texture guns use low-pressure compressed air at the nozzle to help shape, soften, and refine the spray fan for smoother textures like orange peel or knockdown.

DP AIRLESS PAINT SPRAYER
DP AIRLESS PAINT SPRAYER

  • Applying “popcorn” or acoustic ceiling texture.

  • Creating wall textures: orange peel, knockdown, skip-trowel, sand finish.

  • Spraying gypsum plaster and stucco (interior and exterior).

  • EIFS (Exterior Insulation and Finish System) applications.

  • Fireproofing and soundproofing materials.

  • Unmatched Speed: Applies texture material vastly faster than manual methods.

  • Consistency: Creates a uniform texture pattern across large surfaces.

  • Handles Thick Materials: Specifically engineered for compounds that would instantly clog a standard paint sprayer.

  • Reduces Labor: Drastically cuts down on physical effort and application time for drywall and plaster professionals.

A texture spraying machine is the essential power tool for professional drywall finishers and plasterers. It transforms the labor-intensive process of applying coatings like popcorn ceiling or wall texture into a rapid, efficient, and consistent operation, thanks to its robust pumping system, hopper agitator, and reversible function.

Make a sample using the original material where possible, then match mixture consistency, nozzle, air setting, distance and application motion. DINO-POWER DP-TX350/TX450 offer 4, 6, 8 and 10 mm nozzle options. Changing nozzle size alone cannot guarantee a match; drying conditions and knockdown timing also affect appearance. Keep the successful settings recorded and compare the dry sample under the room’s lighting before spraying the repair area.

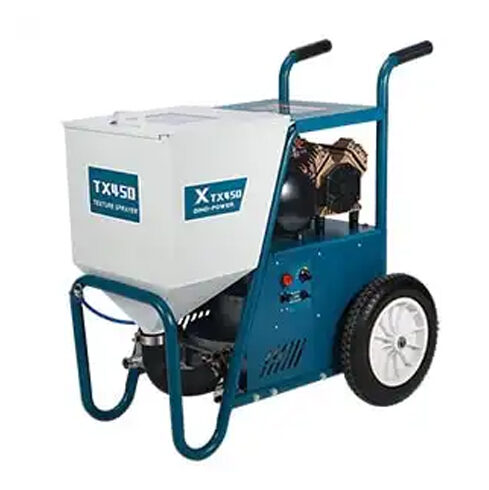

Their product specification lists a maximum grain size of 3 mm. This is a model-specific limit, not permission to spray any mixture containing 3 mm particles. Fibers, lumps, setting time and binder viscosity also matter. Strain or prepare material only as the coating supplier permits, and use the specified hose and nozzle. Send DINO-POWER the material data sheet if it contains aggregate or fibers so compatibility can be checked before the job.

The DP-TX350 and DP-TX450 product table identifies the basic versions as supplied without a compressor, while DP-TX450C is the version with an air compressor. Confirm the exact version and included accessories on your quotation. Air-assisted texture application needs adequate delivered airflow at the gun; pump output alone is insufficient. DP-TX450 lists 8 L/min maximum delivery and a 50 L hopper. DINO-POWER can help match the compressor and gun to your intended finish.

Inspect the pumping hose, connections and rollers according to the model manual, and clean the material path before the coating sets. DP-TX350/TX450 use a peristaltic pump, so their service routine differs from a piston airless sprayer. Reduced delivery, leakage or abnormal operation needs investigation after pressure relief and power isolation. Use the correct replacement pumping hose for the model and material. Do not assume a generic hose has the required dimensions, chemical compatibility or service life.
