High pressure painting hose

DP high pressure paint spraying hose compatible with world brand airless sprayer

The painting hose cover the range of 3/16", 1/4", 3/8", 1/2/" different size, 250bar / 350bar / 500bar working pressure, widely used for all airless paint sprayers from electric / gasoline / hydraulic and pneumatic airless pumps.

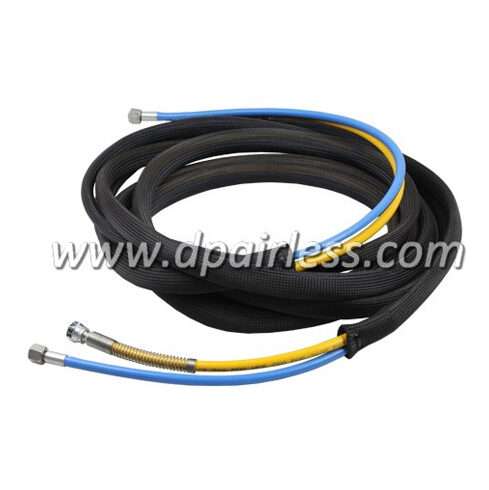

DP-637HT Twin-hose for Air-mix Airless Painting

Technical datas of Air Hose: Hose Lenth: 10m or 7.5m Connectors at both ends: 1/4” Max. Pressure for Ai Hose: 20bar/290psi Hose material: nylon Technical datas of high pressure Paint Hose: hose Length: 10m or 7.5m Connectors at both ends: 1/4” Hose diameter: 3...
DP-637H Two layers wire braided high pressure airless painting hose

Specifications of the high pressure airless spray hose Similar to hose #28889/288490/288493/287041/287042/287043/ 287850/287851/241338/287852/288501/287823 2 layers wire braided high pressue hose for airless sprayer (standard SAE100 R7) Material: nylon inner tube, polyurth...

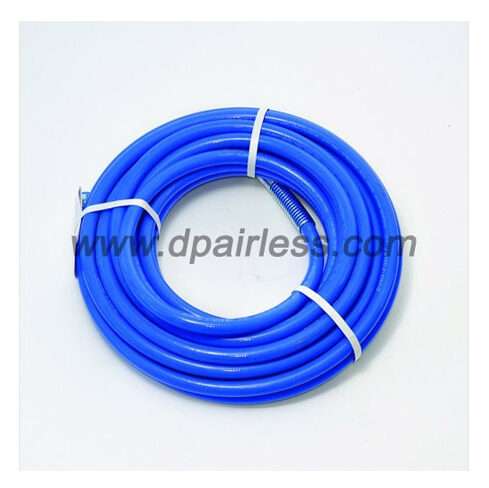

DP-637H 2-layers FIBRE braided high pressure airless painting hose

Specifications Material: nylon inner tube, polyurthane covered Color: blue, red, yellow, black Static-electricity free (UL approved) Connector size: 1/4"NPSM , 1/4"PT, M16*1.5 OEM order is welcome, (we can print your logo onto the hose, MOQ is only 3000m) our high pressure hose i...

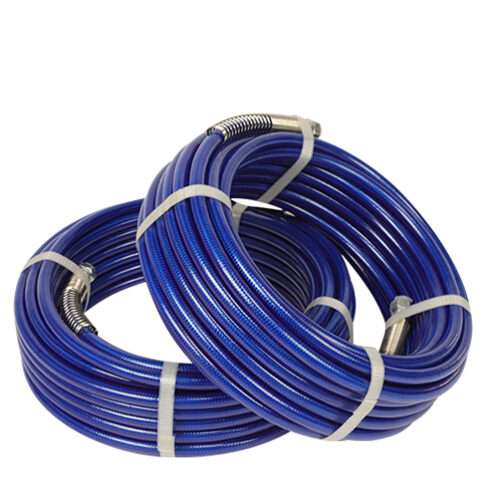

DP-637H High Pressure Airless Painting Hose

Technical Data of DP-637H High Pressure Airless Painting Hose Working pressure 200BAR Bursting pressure 600BAR 0.25mm single layer steel wire in the middle of the painting hose The inner layer is high density resin, the outer layer is transparent resin Inner diameter 6...

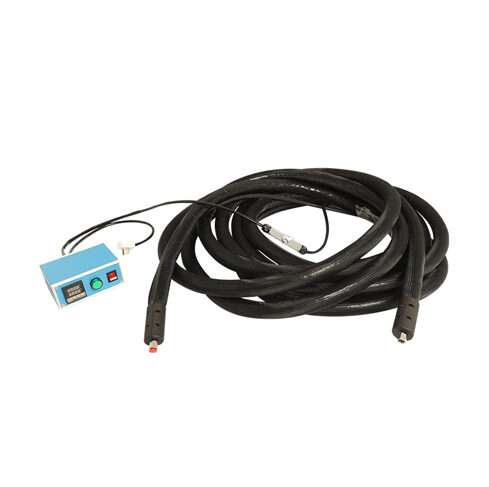

Polyurethane Reacting Heated Hose

This reacting heated hose is a NEW developed polyurethane insulation heating hose that help maintain proper fluid temperatures while spraying, resulting in better yield and performance. Working together with DP-FA50, FA60 etc. plural components reacting machines. Features Of...
