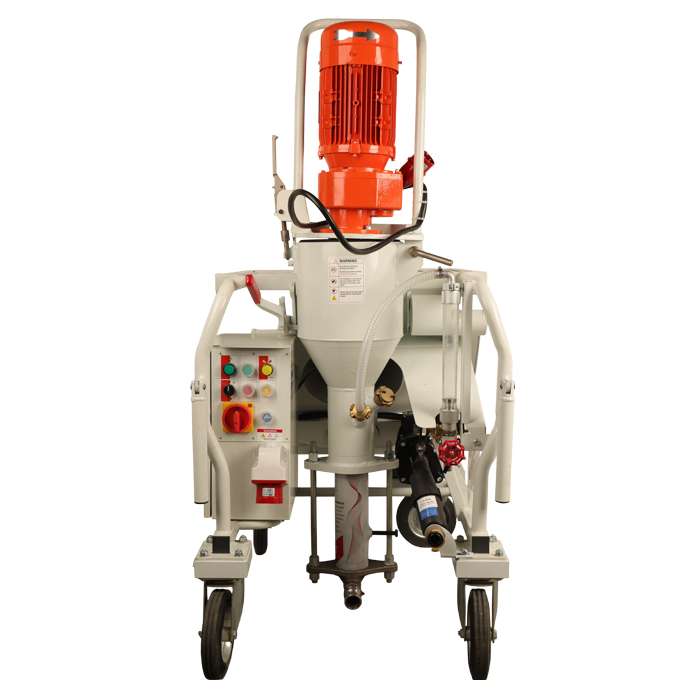

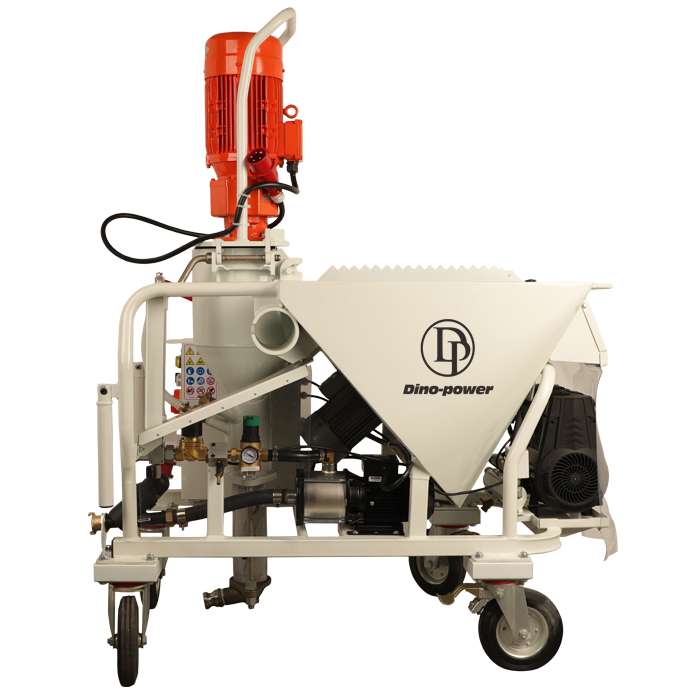

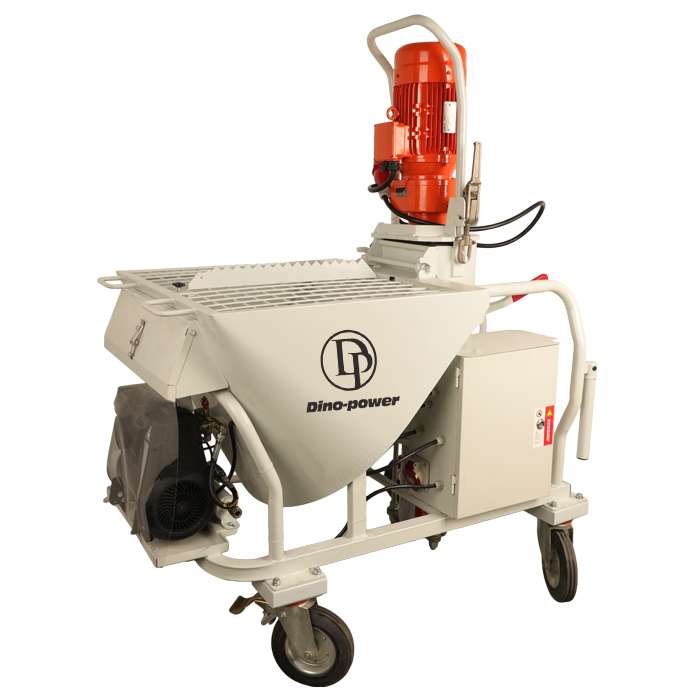

M6 Plaster Spraying Pump with Mixer Compressor and Water pump
The M6 Mixing Pump Sprayer is compact and easy to use, perfect for mixing and spraying dry powders, plasters, adhesives, and reinforcing mortar. Compatible with bagged and soft materials, it includes a mixer, compressor, and water pump, powered by 3-phase electricity.
Power Supply: 380V/3-phase32A
Max Installed Power: 7.55kw
Mixing motor power: 5.5kw
Feeding wheel power: 0.75kw
Electropump motor power: 0.55kw
Compressor: 0.75KW-250L/min
Material Flow: 26L/min
Pumping distance with 25mm hose: 25m
Pumping height: 25m
Hopper capacity: 115L
Loading height: 900mm
Soundpressure level: <80dB(A)
Machine weight: 220kg
Machine dimensions: 1250x730x970mm
Packed weight: 326kg
Packed dimensions: 1300x800x1250mm
DESCRIPTION of the MIXER PUMP
The M6 handles all pumpable dry mortars
From base coats to textured plasters-indoors and out.It is a user-friendly,the modular design allows for effortlessdisassembly,easy transport in cars and quick setup on anyfloorJust connect the hoses and go!
The transparent layout of the controls and the conscious avoidance of superfluous switches make for simple operation.
The universal wheels mean that the mixer can be transported with ease at all times.
It has easy and quick to use tensioning wedges, enabling important elements such as the worm pump or material container to be replaced in just a few seconds.
Two Options
1. Standard
2. Premium (Imported gear reducer, air compressor, water pump, and electrical components)
Smart Compressor
Pressure cut-off for enhanced safety.
Reinforced frame
For maximum durability, plus a new built-in toolbox for accessories

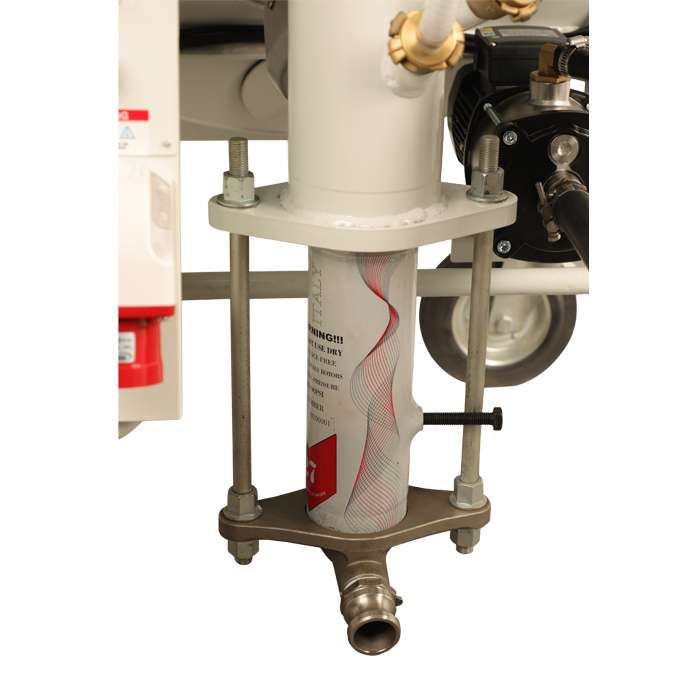

High-Performance Output
Heavy-duty cast iron manifold allows for 50m pumping distance with minimal component wear.
Optimized feeding wheel
Larger cells for superior fiber material intake
Conical Mixing Pipe
For optimized material flow
Reliable Operation
Redesigned hydraulics for easy water drainage.Features a high-capacity self-priming pump

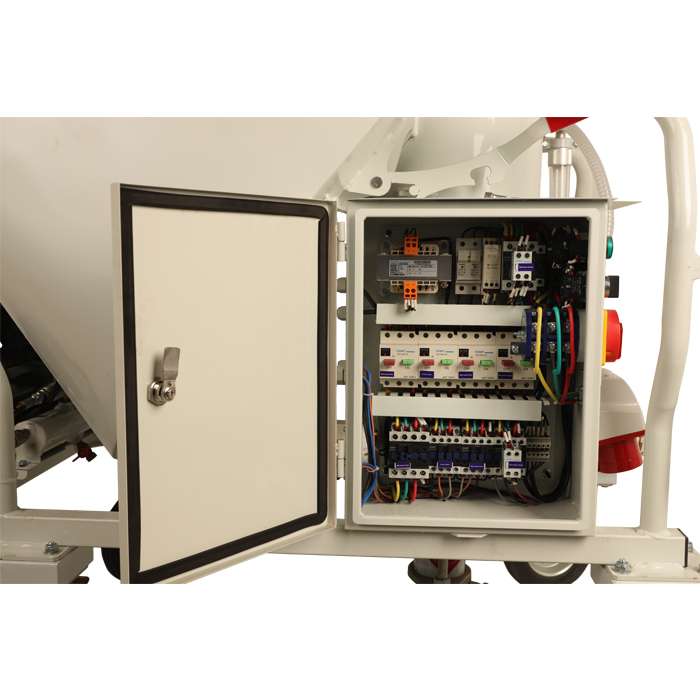

Single-sided controls
For comfortable operation.Everything in sight
In-built Water Pump
Ensures constant flow.
Insertion aid
For easy rotor installation
Areas of use and applications
M6 suitable for pumping or sprayingall dry premixed materials:
- Cement/lime/gypsumplaster based
- Structuralreinforcement mortars
- Anti-humidityrestorative plasters
- Insulating plasters based on polystyrene or cork
- Structuralreinforcement mortars
- Grout/Core-Fill Grout
- Cement/anhydride based self-levelling screeds
- Thermalinsulatingscreeds based on cork or polystyrene
- Fireproofing mortar
- Glues for thermalinsulation coatings
- Binders/mortarsforinjections

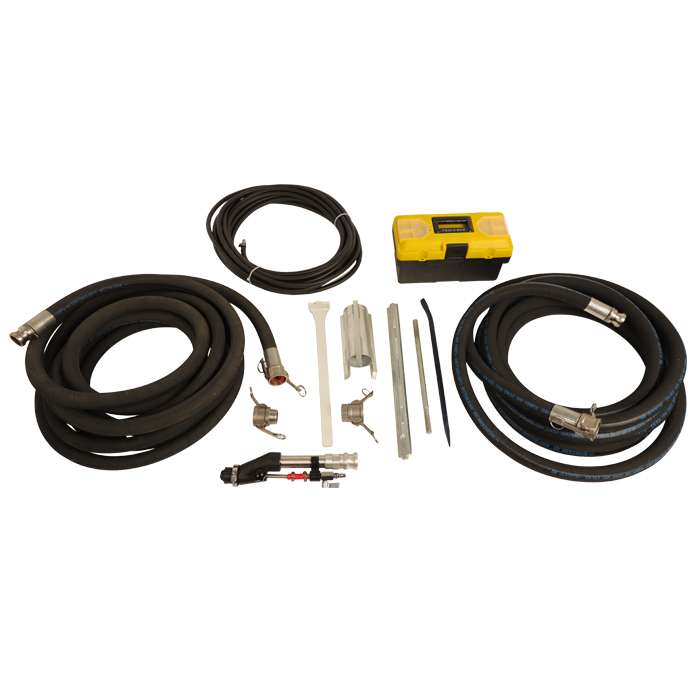

Standard Accessories:

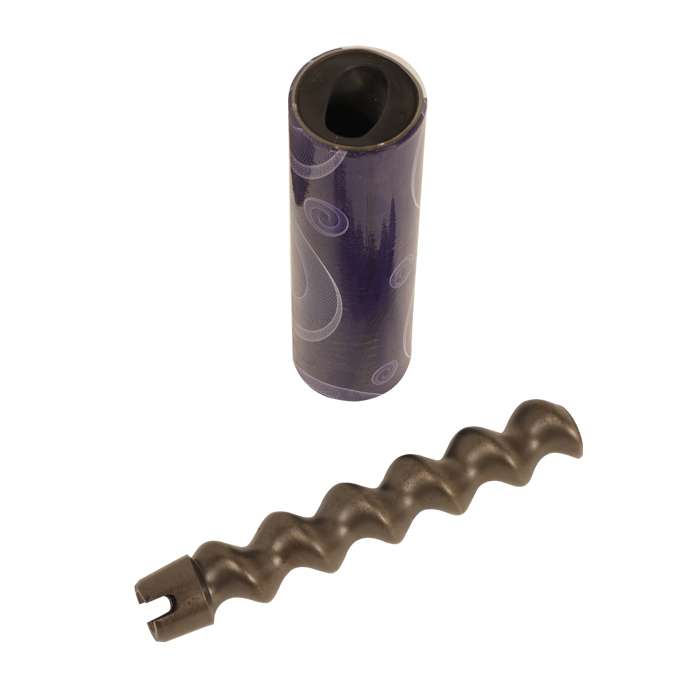

Rotor D7-2.5
Feeding wheel gearmotor
Compressor
Water system with flow meter
3P+ N +T Red socket and plug
15 m water hose
25mm materialhose SM+8M
10mm air hose 15M with quick couplings
Built-in accessory box with gun(With 10/12/14mm nozzle)
Cleaning accessories (scraper and spon)
Rotor replacement wrench

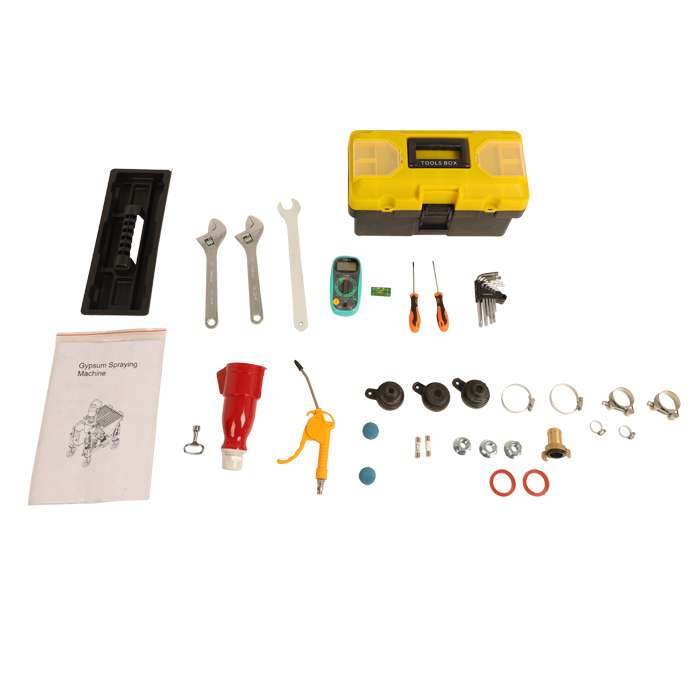

Tool Box
